Trek

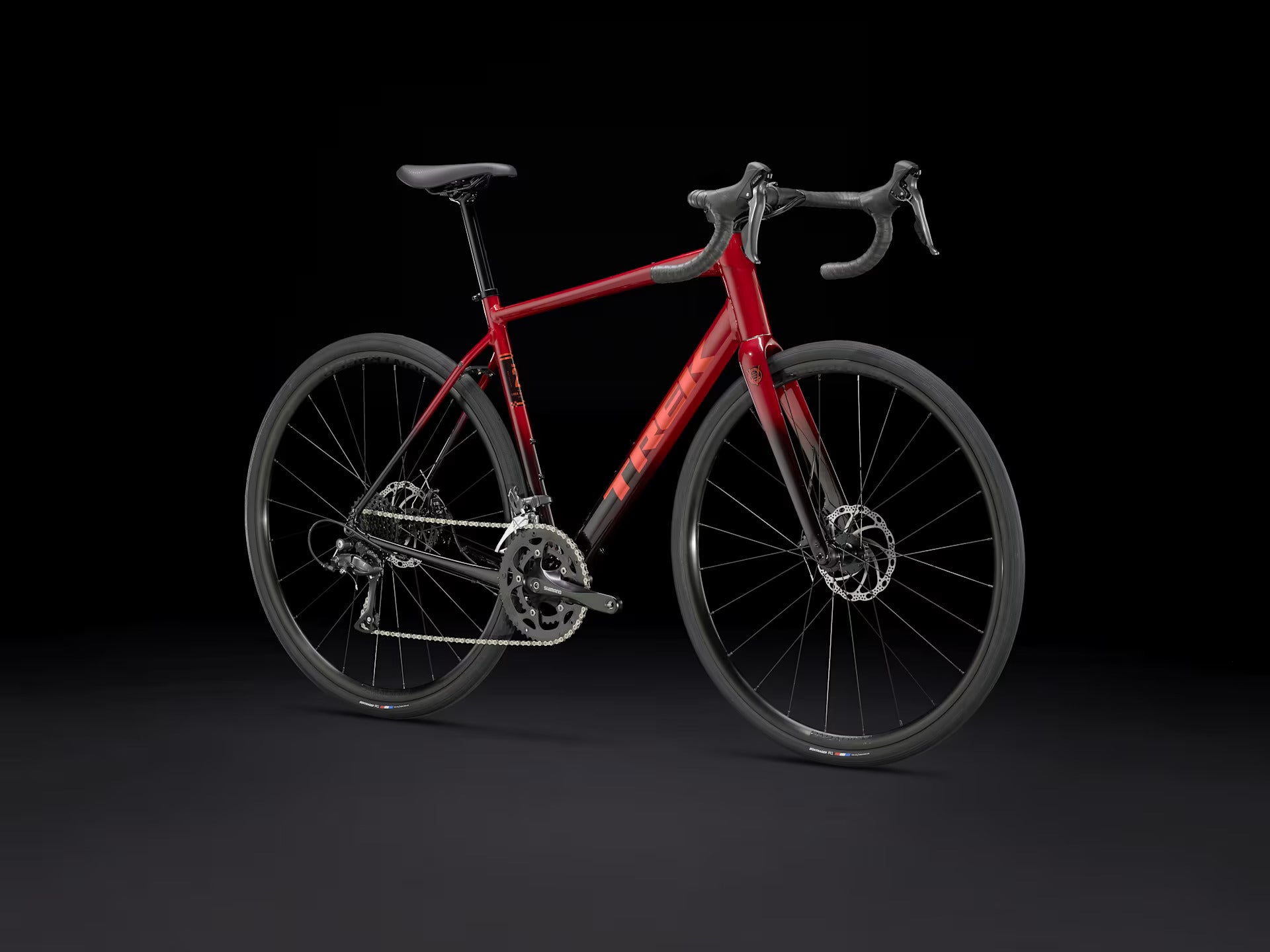

Domane AL 2 Gen 4

Domane AL 2 Gen 4

Rs. 98,699.00
Rs. 98,699.00
Sale Sold out
SIZE: Red
Size

The Domane AL 2 is a speedy and versatile performance road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, an 8-speed Shimano Claris drivetrain, rack, mudguard and top tube mounts, and a comfortable all-day riding position – the Domane AL 2 is perfect for group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.



Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
56 - 10.55 kg / 23.26 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

*Shifter
Size: 44, 49, 52, 54, 56, 58
Shimano Claris ST-R2000-L, 8 speed, left
Size: 44, 49, 52, 54, 56, 58
Shimano Claris ST-R2000-R, 8 speed, right
Front derailleur
Shimano Claris R2000, 31.8 mm clamp
Rear derailleur
Shimano Claris R2000, medium cage, 34T max cog
*Crank
Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Size: 56, 58
Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket
Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette
Shimano HG31, 11-32, 8-speed
Chain
Shimano Sora HG71, 8 speed
Max. chainring size
1x: 50T, 2x: 50/34

Hub front
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

Saddle
Verse Short, steel rails, 145 mm width
*Seatpost
Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar
Size: 44
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 49
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 54, 56
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
Size: 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake
Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor
Tektro wave, 6-bolt, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
