Trek

Domane AL 4 Gen 4

Domane AL 4 Gen 4

Rs. 149,199.00
Rs. 149,199.00
Sale Sold out

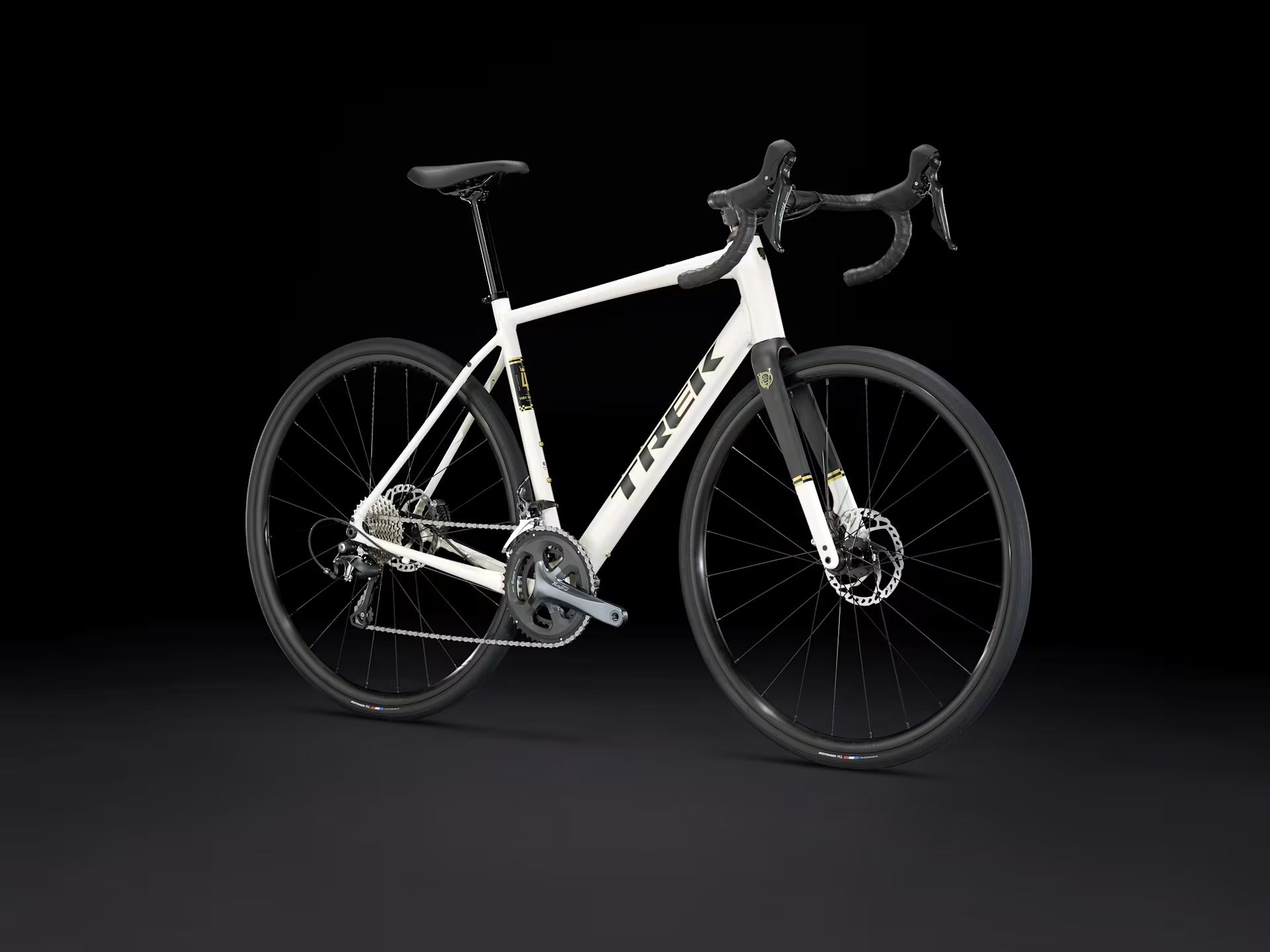

Color: White

The Domane AL 4 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 10-speed Shimano Tiagra drivetrain, top tube mounts and an all-day road comfort geometry – the Domane AL 4 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.



Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
56 - 10.35 kg / 22.82 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter
Shimano Tiagra R4720, 10-speed
Front derailleur
Shimano Tiagra 4700, 31.8 mm clamp
Rear derailleur
Shimano Tiagra 4700, long cage, 34T max cog
*Crank
Size: 49, 52
Shimano Tiagra 4700, 50/34, 170 mm length
Size: 54, 56
Shimano Tiagra 4700, 50/34, 172.5 mm length
Size: 58
Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket
Shimano RS501 BSA
Cassette
Shimano 10-speed, 11-32T
Chain
Shimano Tiagra HG54, 10-speed
Max. chainring size
1x: 50T, 2x: 50/34

Hub front
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

Saddle
Verse Short, steel rails, 145 mm width
*Seatpost
Size: 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar
Size: 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 49
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 54, 56
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Size: 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Size: 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
*Handlebar tape
Size: 49, 52, 54, 56, 58
Trek EcoTack
Size: 49, 52, 54, 56, 58
Bontrager Supertack Perf tape
*Stem
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake
Shimano Tiagra hydraulic disc, flat mount
Brake rotor
Shimano RT66, 6-bolt, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
View full details
