Trek

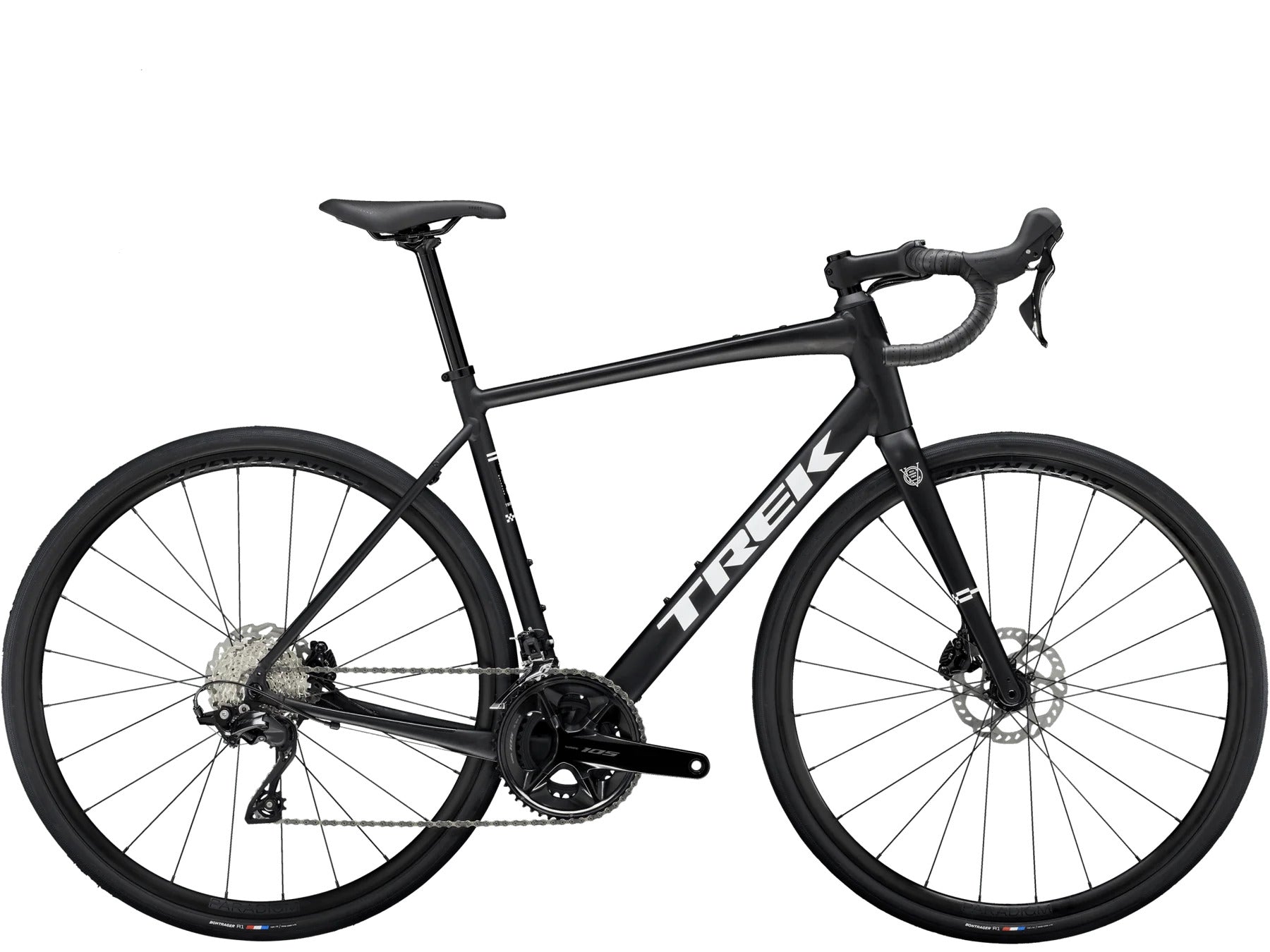

Domane AL 5 Gen 4

Domane AL 5 Gen 4

Rs. 184,299.00
Rs. 184,299.00
Sale Sold out
Color: Black

The Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 12-speed Shimano 105 drivetrain, top tube mounts and an all-day road comfort geometry – the Domane AL 5 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.



Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
56 - 9.85 kg / 21.72 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter
Shimano 105 R7120, 12-speed
Front derailleur
Shimano 105 R7100, 31.8 mm clamp, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
*Crank
Size: 44
Shimano 105 R7100, 50/34, 165 mm length
Size: 49, 52
Shimano 105 R7100, 50/34, 170 mm length
Size: 54, 56
Shimano 105 R7100, 50/34, 172.5 mm length
Size: 58, 61
Shimano 105 R7100, 50/34, 175 mm length
*Bottom bracket
Size: 44, 49, 52, 54, 56, 58
Prowheel PW-BB73+, 68/73 mm, threaded external
Size: 44, 49, 52, 54, 56, 58, 61
Shimano RS501 BSA
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 50T, 2x: 50/34

Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

Saddle
Verse Short, steel rails, 145 mm width
*Seatpost
Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar
Size: 44
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: 49, 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: 54, 56, 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: 61
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape
Trek EcoTack
*Stem
Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake
Shimano 105 hydraulic disc, flat mount
Brake rotor
Shimano RT70, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
