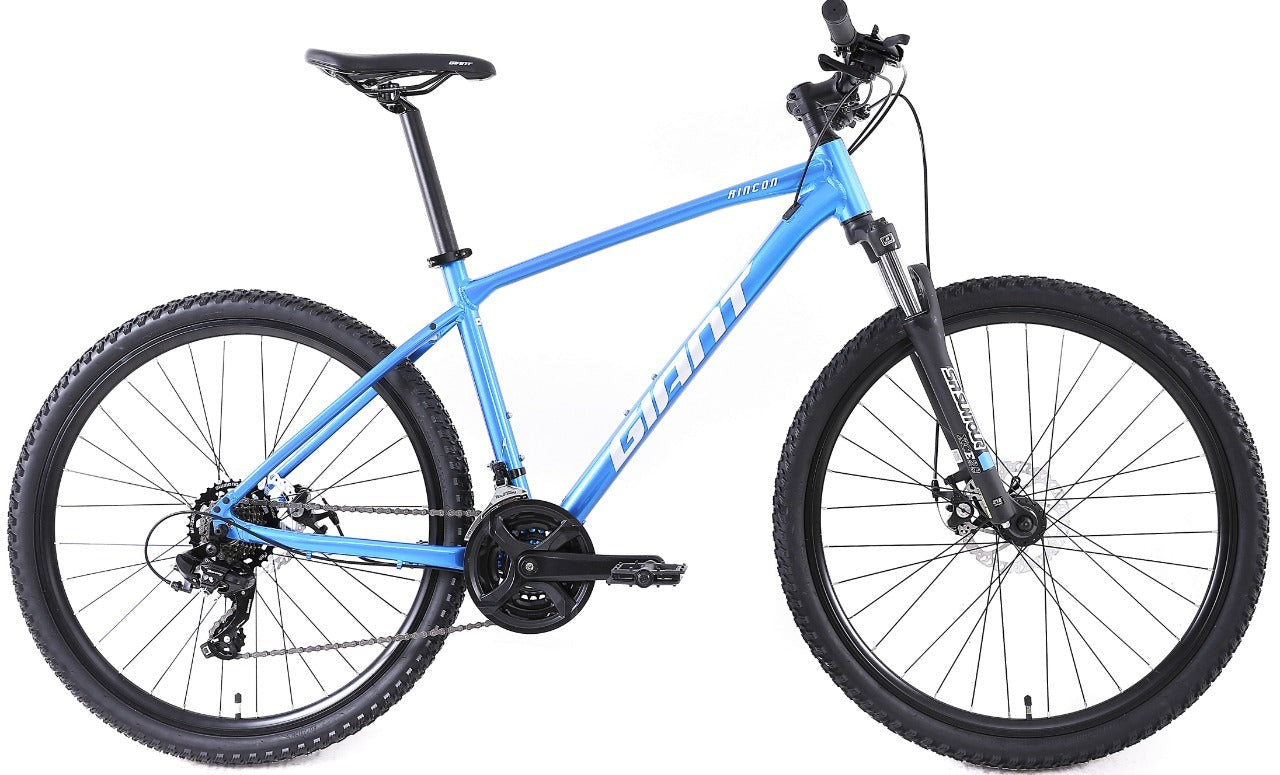

Giant Rincon 2 27.5er (Blue)
Giant Rincon 2 27.5er (Blue)
Regular price
Rs. 33,999.00
Regular price
Sale price
Rs. 33,999.00
Unit price
per
Couldn't load pickup availability
Features
- ALUXX aluminum frameset is hand-built by the world leader in aluminum engineering.
- Powerful disc brakes give you added control on off-road terrain.
- A 100mm suspension fork soaks up bumps and shocks while riding off-road.
Specifications
- Intended Use- Comfort
- Wheel Size- 27.5"
- Braking System- Mechanical Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- ALUXX-Grade Butted Aluminum
- Fork- SR Suntour M3030A. 27.5", 75mm travel, Preload Adjustible(standard decal)
- Bottom Bracket- Cartridge (FP-B908/FEMIN)
- Chain- KMC Z7
- Crank- Prowheel 42/34/24
- Shift Levers- Shimano EF41 3x7
- Cassette- Sunrise MFM 300 7SPD 14-34
- Front Derailleur- Shimano Tourney FD TY-300
- Rear Derailleur- Shimano Tourney RD TY-300
- Grips/Bartape- Giant Sport
- Handlebar- Giant Sport XC, 25.4 Alloy x 680mm
- Stem- Forged Alloy 25.4mm, 15D
- Saddle- Giant Sport
- Seatpost- Giant Sport, 30.9, 2 Bolts
- Front Brake- TKB-172 mechanical disc
- Rear Brake- TKB-172 mechanical disc
- Front Wheel- Giant 27.5", Double Wall Aluminum,32H, 21mm width
- Rear Wheel- Giant 27.5", Double Wall Aluminum,32H, 21mm width
- Tire- Kenda K1080 27.5x2.1 30 tpi
- Pedal- Nylon body/cage
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 370 | 405 | 455 | 510 |
| B | Seat Tube Angle | 73.5° | 73° | 73° | 72.5° |
| C | Top Tube Length (mm) | 555 | 570 | 590 | 610 |
| D | Head Tube Length (mm) | 115 | 121 | 127 | 133 |
| E | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| F | Fork Rake (mm) | 42 | 42 | 42 | 42 |
| G | Trail (mm) | 77.1 | 77.1 | 77.1 | 77.1 |
| H | Wheelbase (mm) | 1048.6 | 1058.3 | 1078.6 | 1093.1 |
| I | Chain Stay Length (mm) | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) | 48 | 48 | 48 | 48 |
| K | Stack (mm) | 580.7 | 586.4 | 592 | 597.7 |
| L | Reach (mm) | 383 | 390.8 | 409 | 421.6 |
| M | Stand Over Height (mm) | 680.3 | 703 | 736.2 | 774.4 |
| N | Handlebar Width (mm) | 600 | 600 | 620 | 620 |
| O | Stem Length (mm) | 90 | 90 | 90 | 90 |
| P | Crank Length (mm) | 170 | 170 | 175 | 175 |
| Q | Wheel Size | 27.5 | 27.5 | 27.5 | 27.5 |
