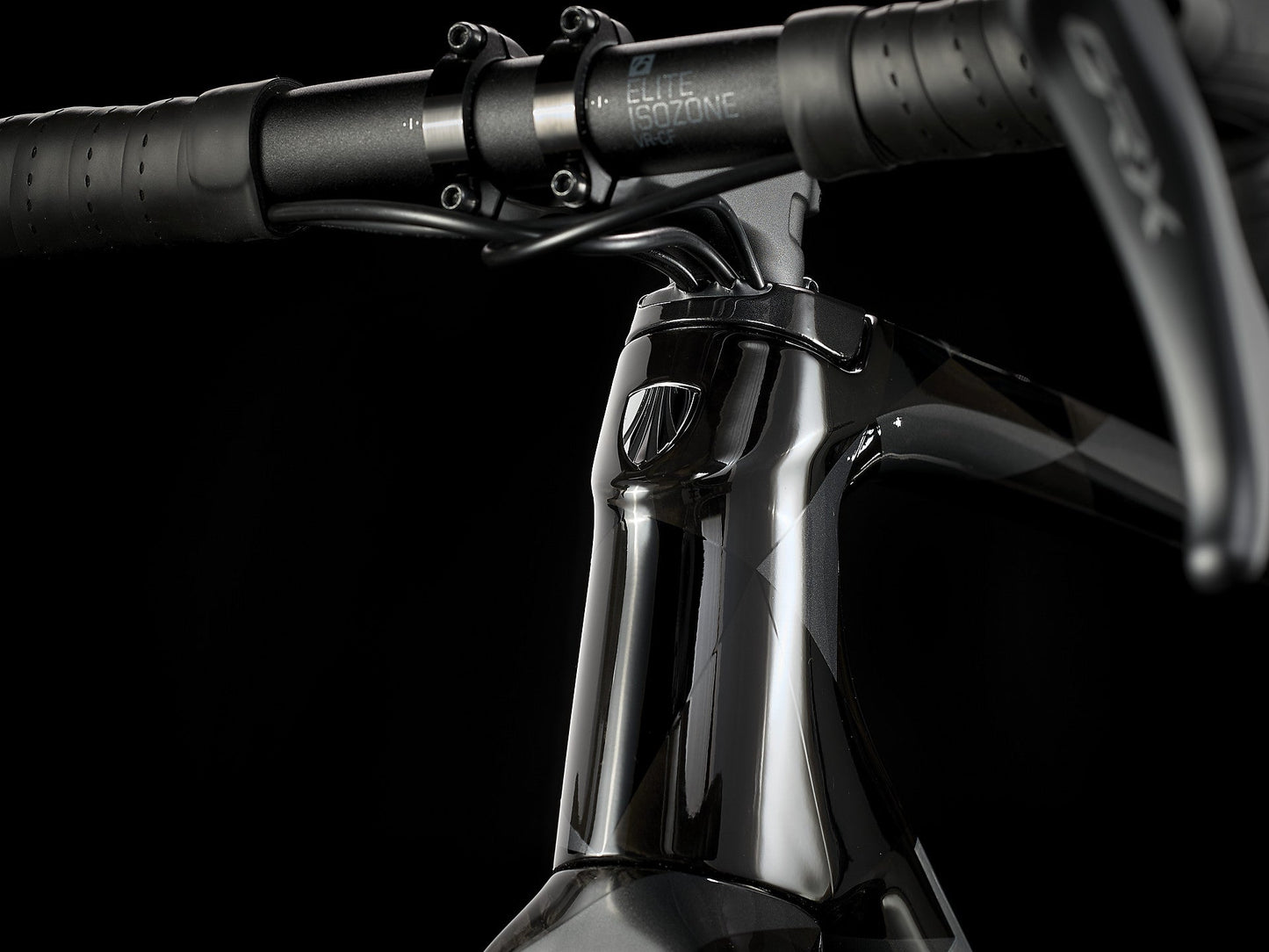

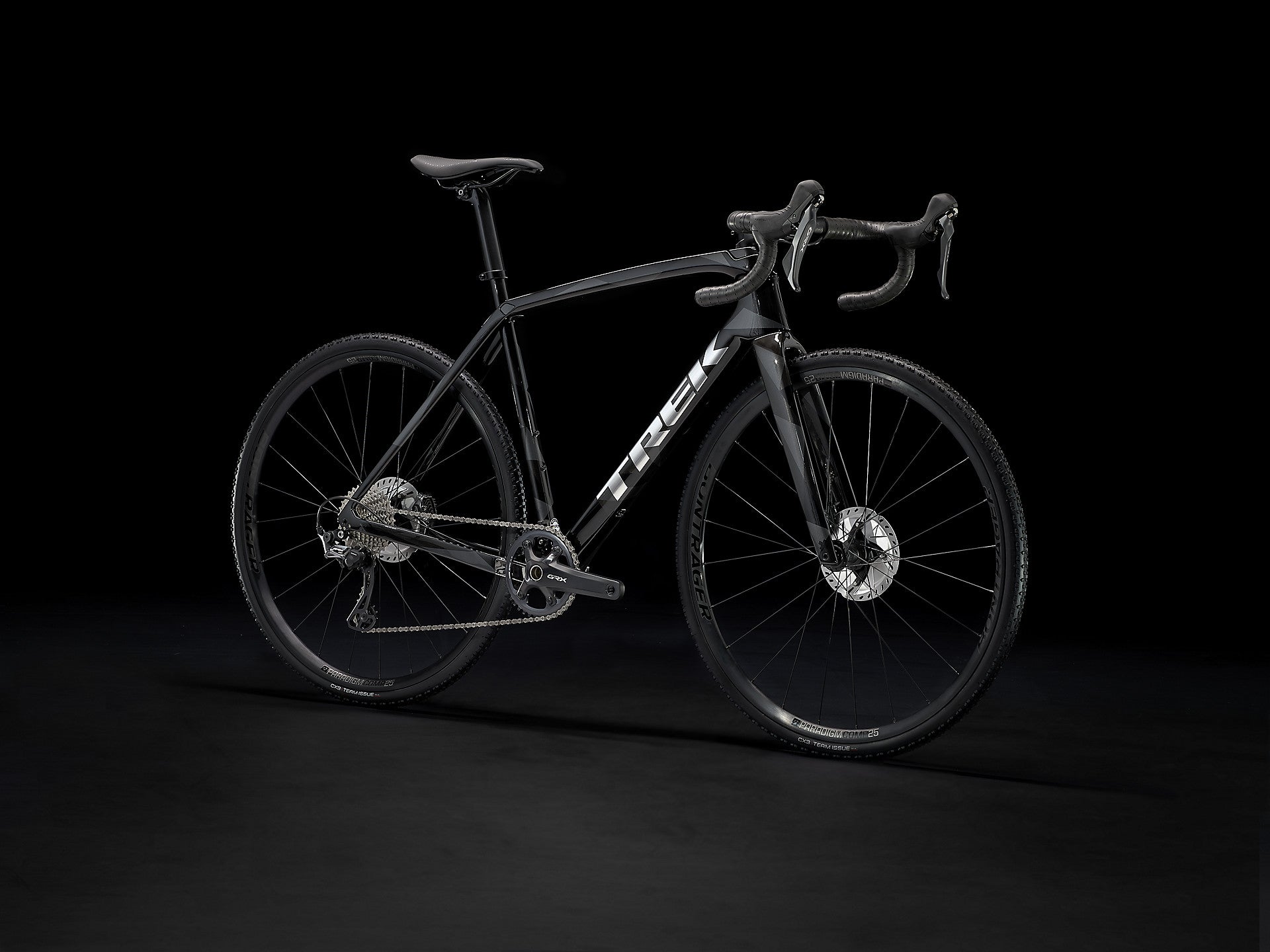

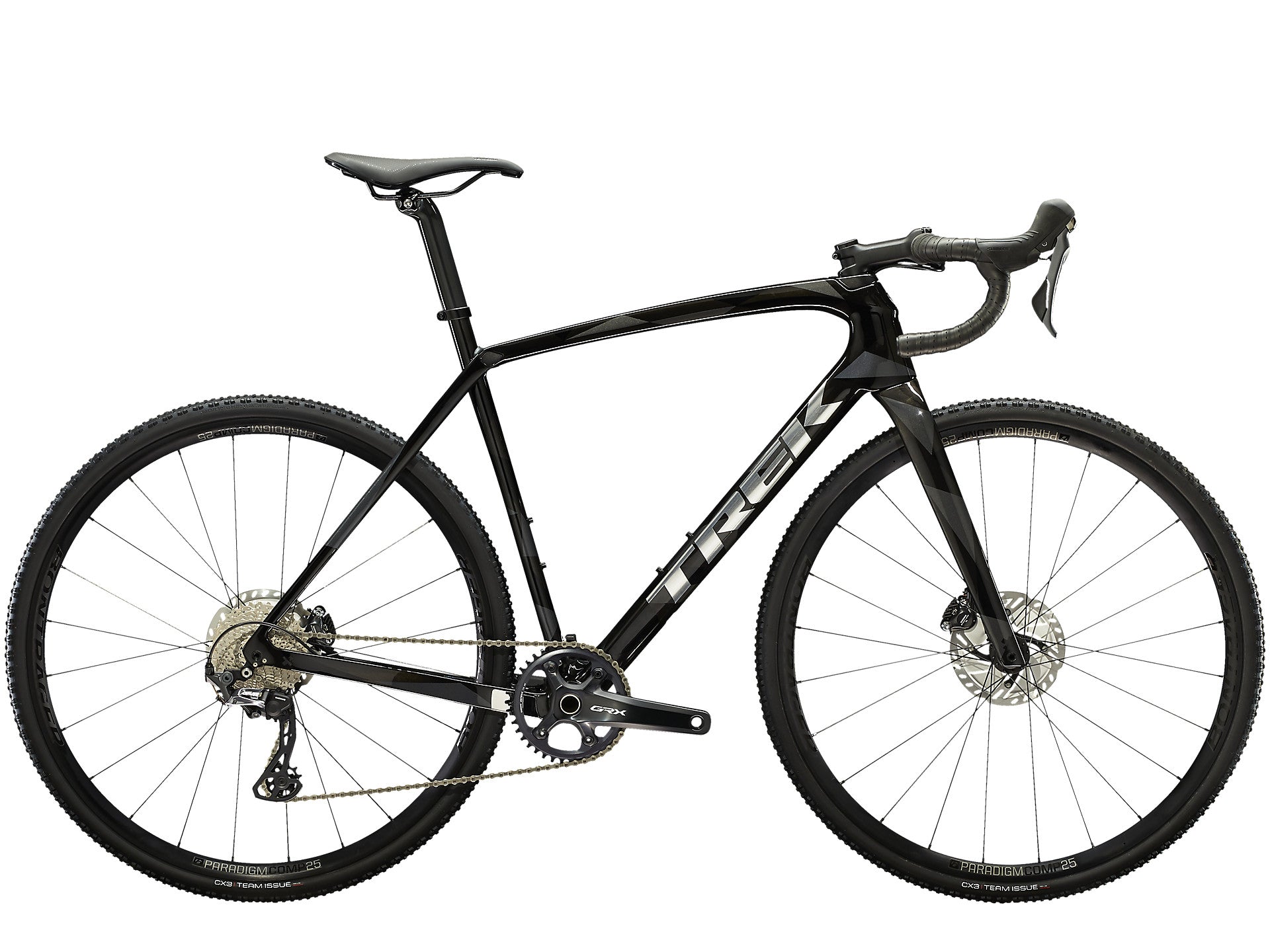

Trek Boone 6 (Carbon Smoke/Lithium Grey/Trek Black)

Description

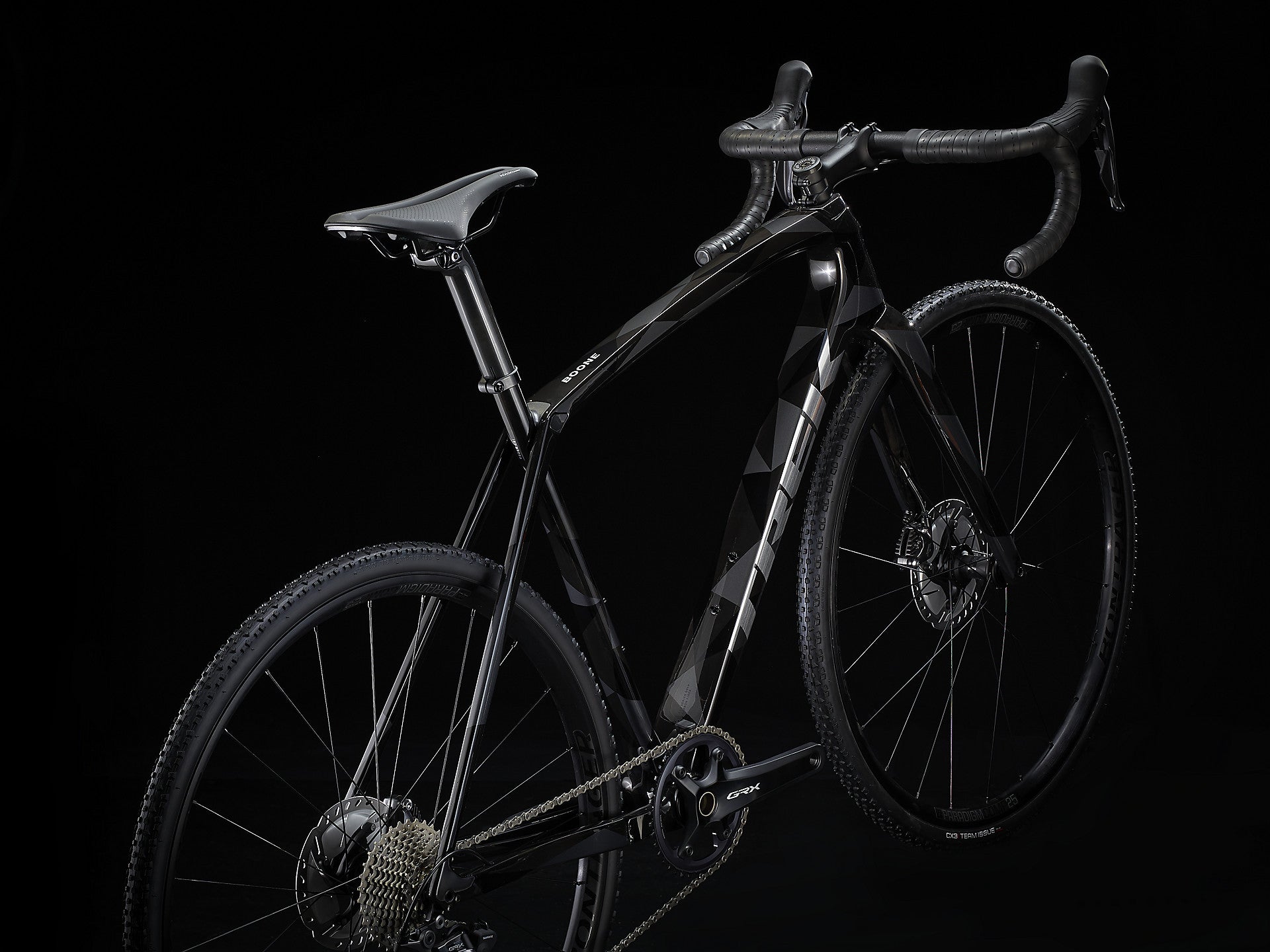

Boone 6 Disc is a carbon cyclocross race bike that's built for crushing any CX course—even the most legendary on the UCI circuit. The sleek, lightweight carbon frame has terrain-smoothing Rear IsoSpeed and is trimmed with parts that perform in any conditions, like a robust GRX drivetrain, vibration-absorbing handlebar, and powerful disc brakes that deliver stopping power on bumpy, muddy terrain.

Features

• It's right for you if... Your happy place is in mid-air bunny hopping over barriers, and you race every course in pursuit of that top spot on the podium. You want a high-end CX race bike designed to help you get there and look great doing it.
• The tech you get A svelte, ultra-lightweight 600 Series OCLV Carbon frame with Rear IsoSpeed for comfort and traction, hidden cable routing for added protection from the elements, a Trek IsoSpeed Cross carbon fork, 1x11 Shimano GRX drivetrain, Bontrager Elite IsoZone handlebar, and powerful flat-mount hydraulic disc brakes that provide precision stopping power in even the messiest conditions.
• The final word If you love crushing frites almost as much as crushing flyovers, Boone's the bike for you. It's made for pure speed and podium-topping performance on every section of course, in any conditions.
• IsoSpeed takes the edge off body-beating course bumps and gravel chatter so you can stay stronger longer, without giving up any pedaling efficiency.
• Our exclusive technologies give you and our pro racers the race-ready details will keep you out front: Ultra stable and compliant IsoSpeed fork. Smarter cable routing. Better shoulderability. Rugged 3S chain keeper.
• Shimano GRX is designed specifically for rough rides—you get great chain retention and a better grip on the hoods and levers.
• This bike was designed with input from cyclocross royalty, so you can trust it to handle everything from hurdles to sand pits.
• Rear IsoSpeed cuts down on the fatiguing impacts of rough courses and increases compliance, giving you more traction when it matters.
• Boone's cross-specific geometry and tube shapes make shouldering easy so you can dominate all aspects of a race, including run-ups.
• Carbon rules on the cross course—it's lighter, more forgiving, and more efficient than aluminum

Specifications

• Intended Use- Race
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

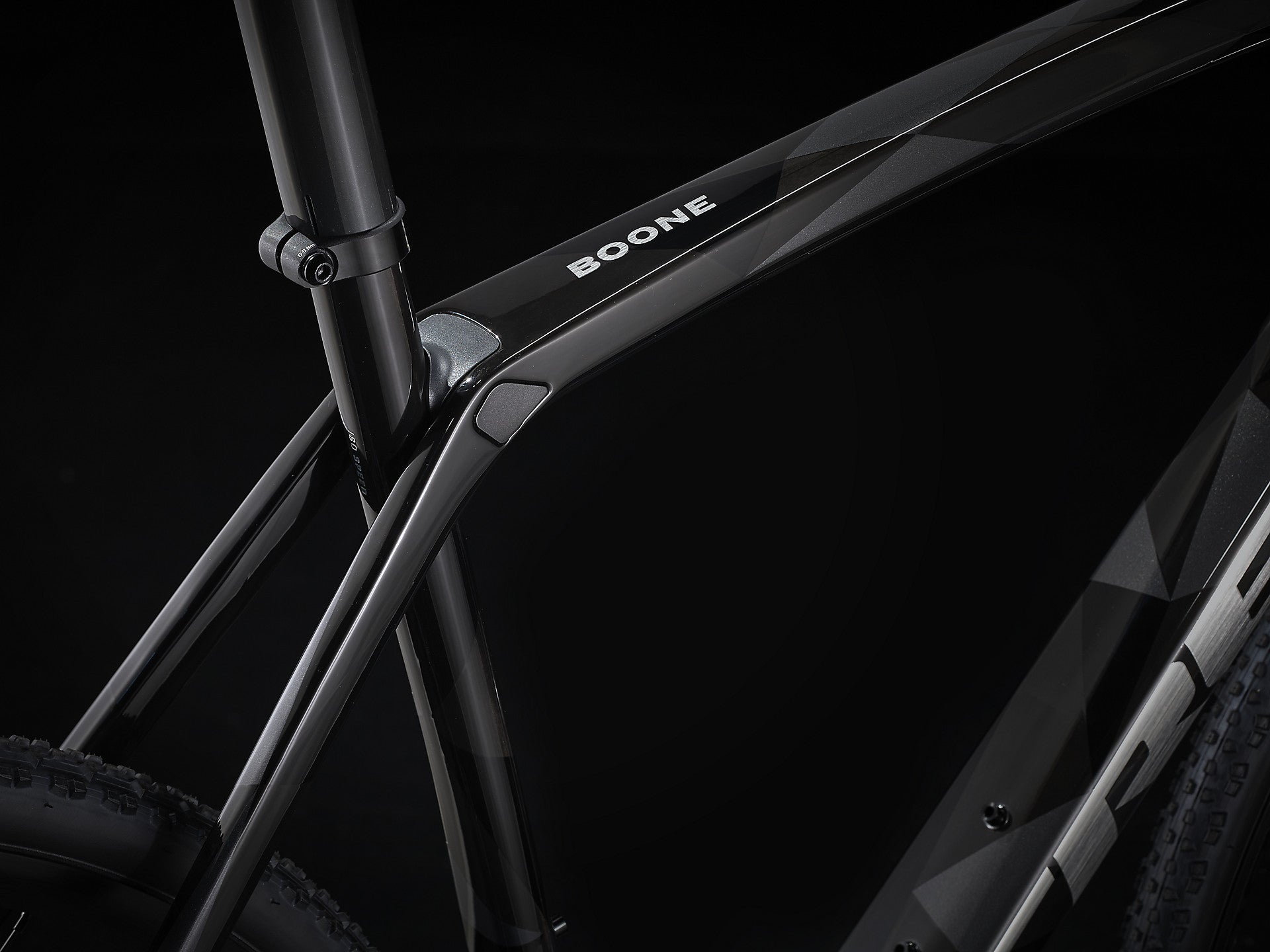

• Frame- 600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
• Fork- The fork is made using Trek's IsoSpeed technology, which is designed to provide a smooth and comfortable ride on rough terrain.
• Bottom Bracket- Praxis, T47 threaded, internal bearing
• Chain- Shimano Ultegra HG701, 11 speed

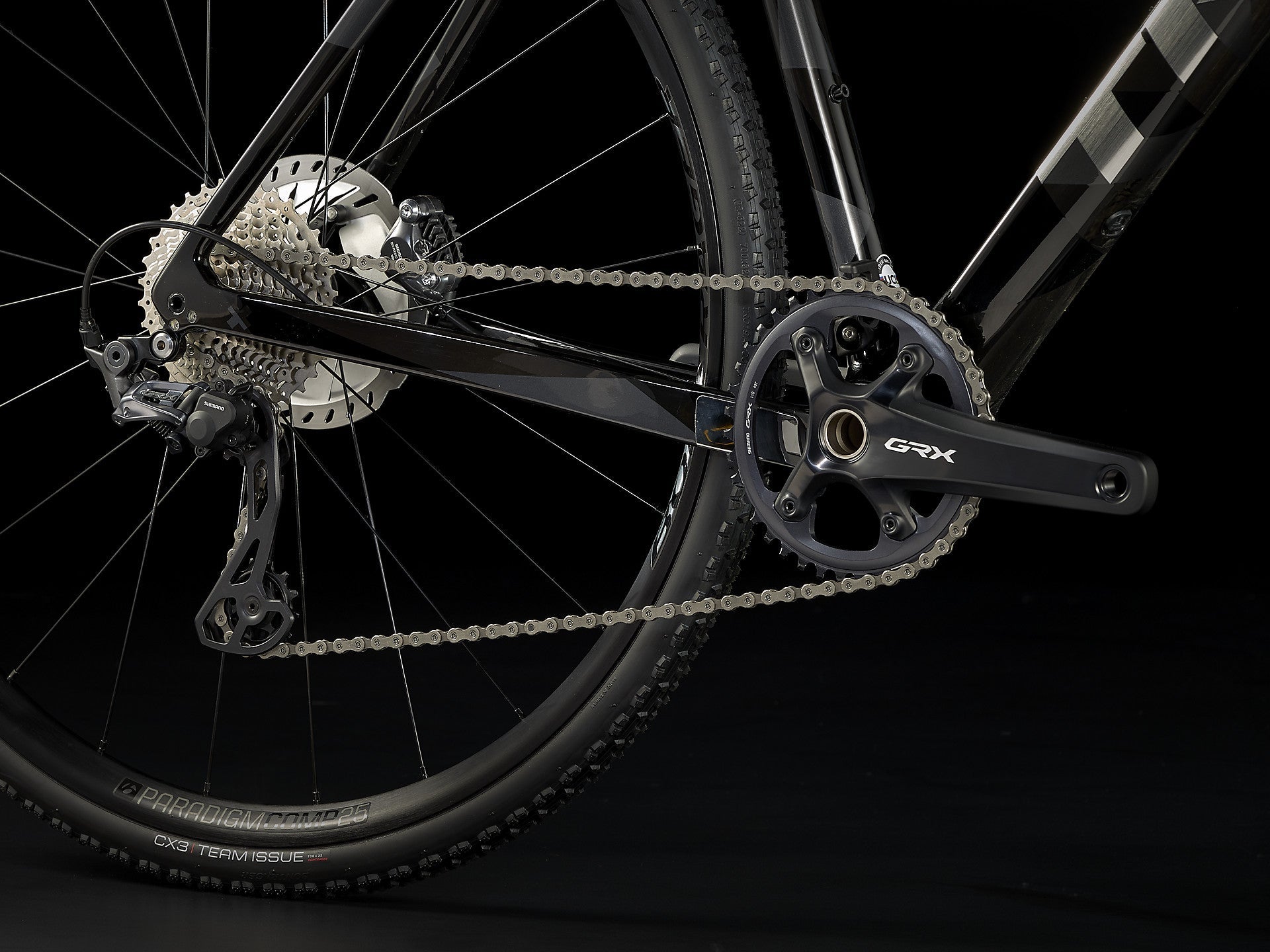

• Crank-
  Size: 49, 52 Shimano GRX RX810, 40T ring, 170mm length
  Size: 54, 56 Shimano GRX RX810, 40T ring, 172.5mm length
  Size: 58, 61 Shimano GRX RX810, 40T ring, 175mm length

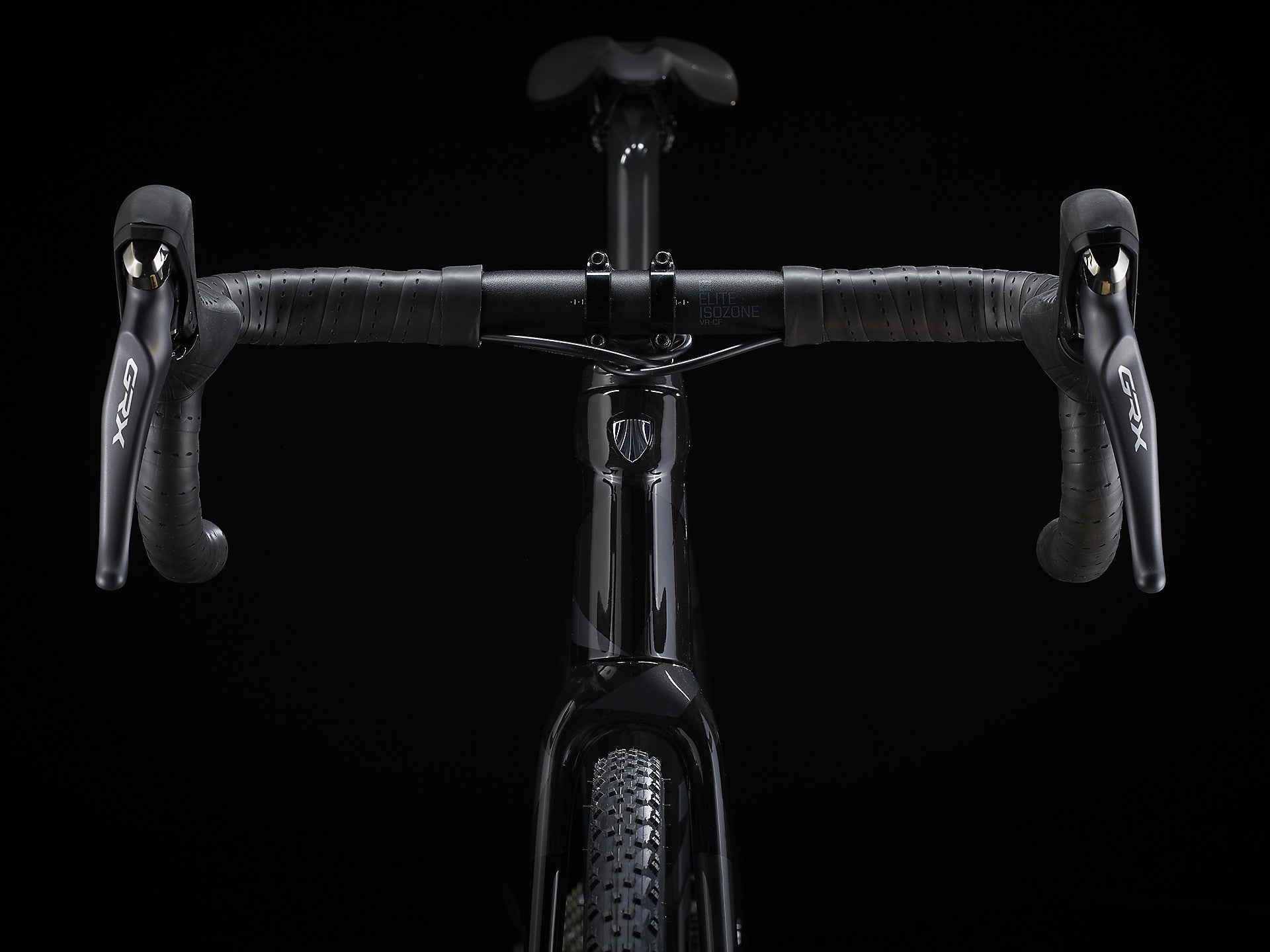

• Shift Levers- Shimano GRX RX810, 11 speed
• Cassette- Shimano Ultegra HG800-11, 11-34, 11 speed
• Rear Derailleur- Shimano GRX RX810, long cage, 34T max cog

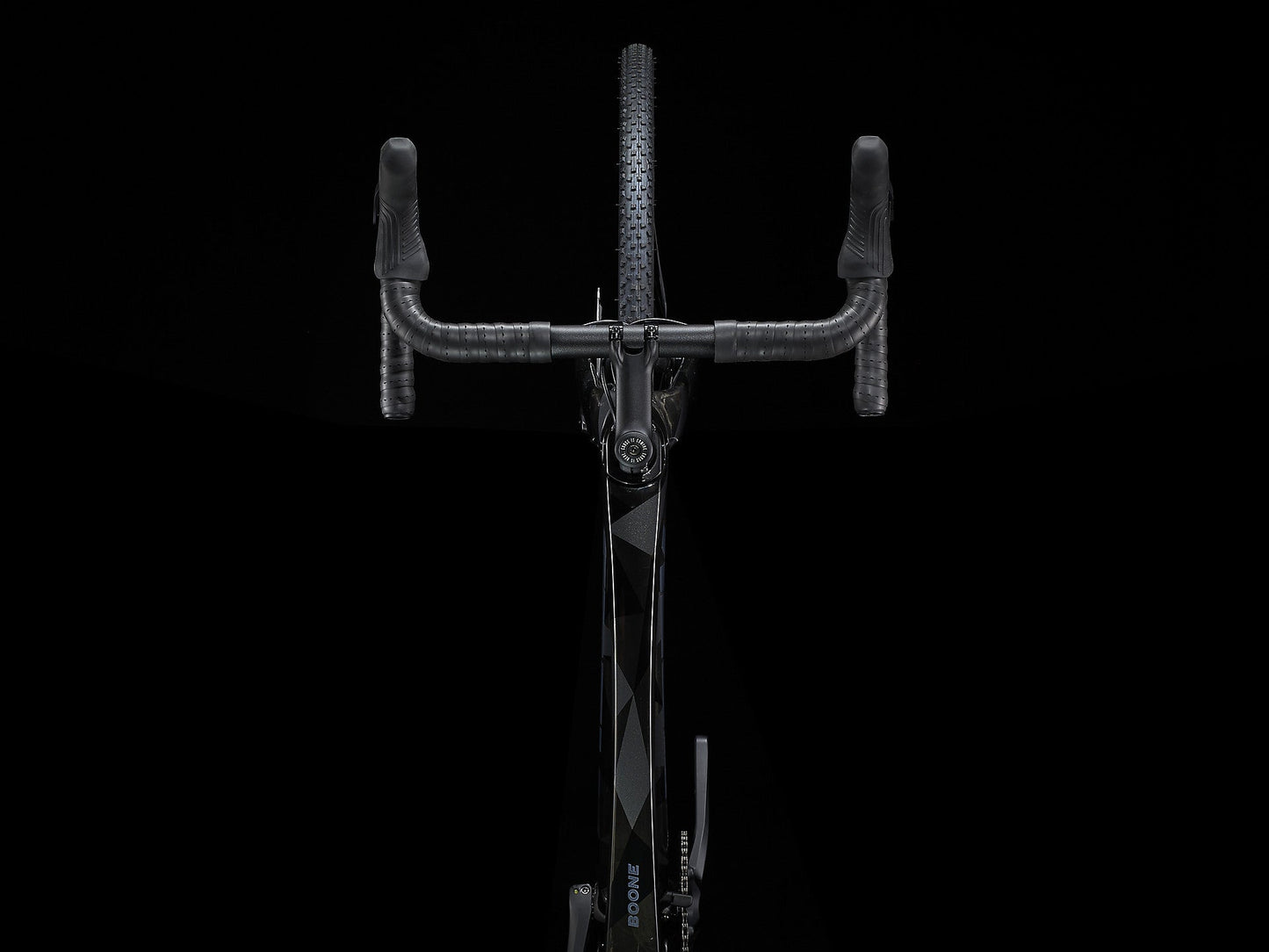

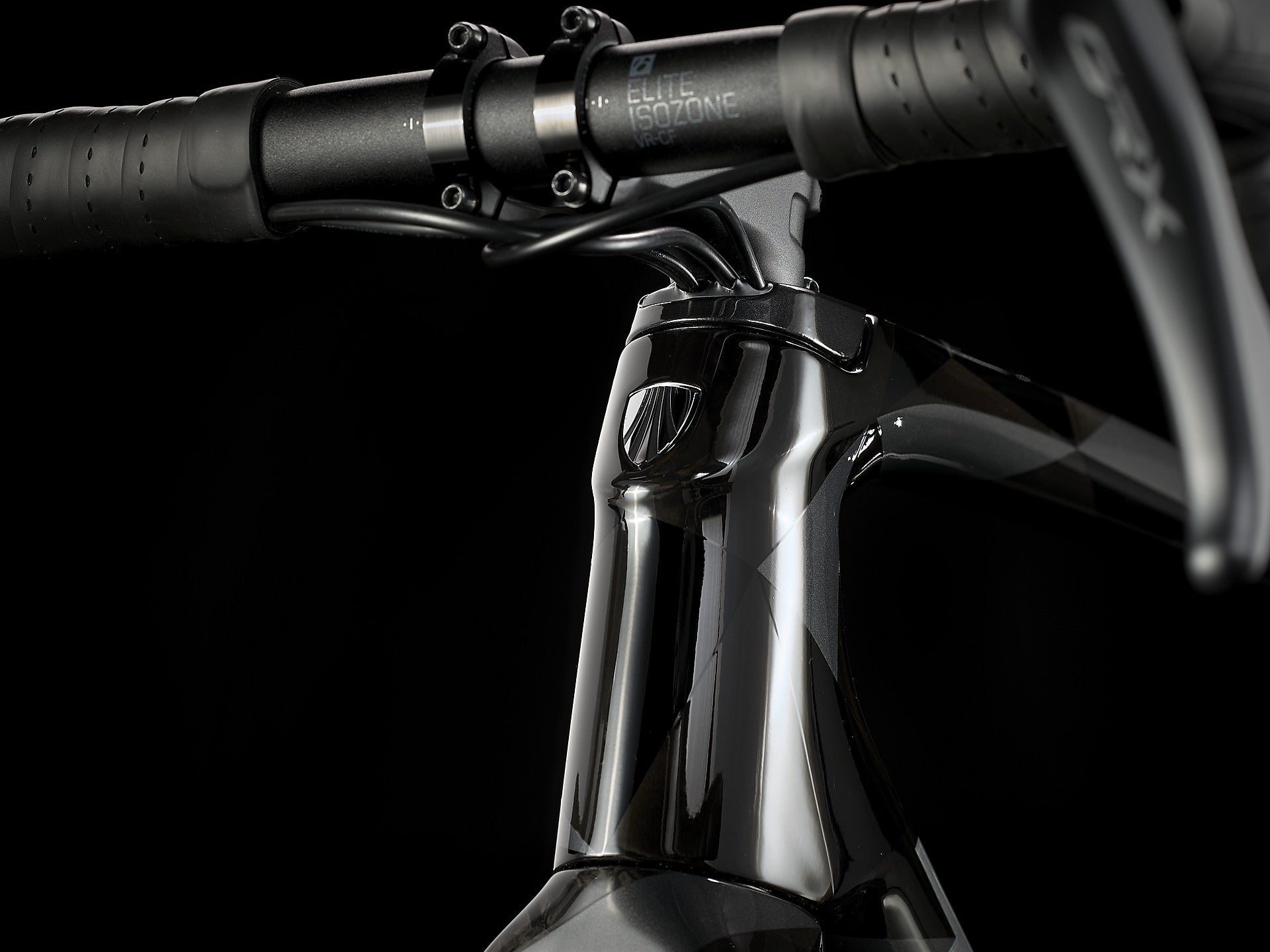

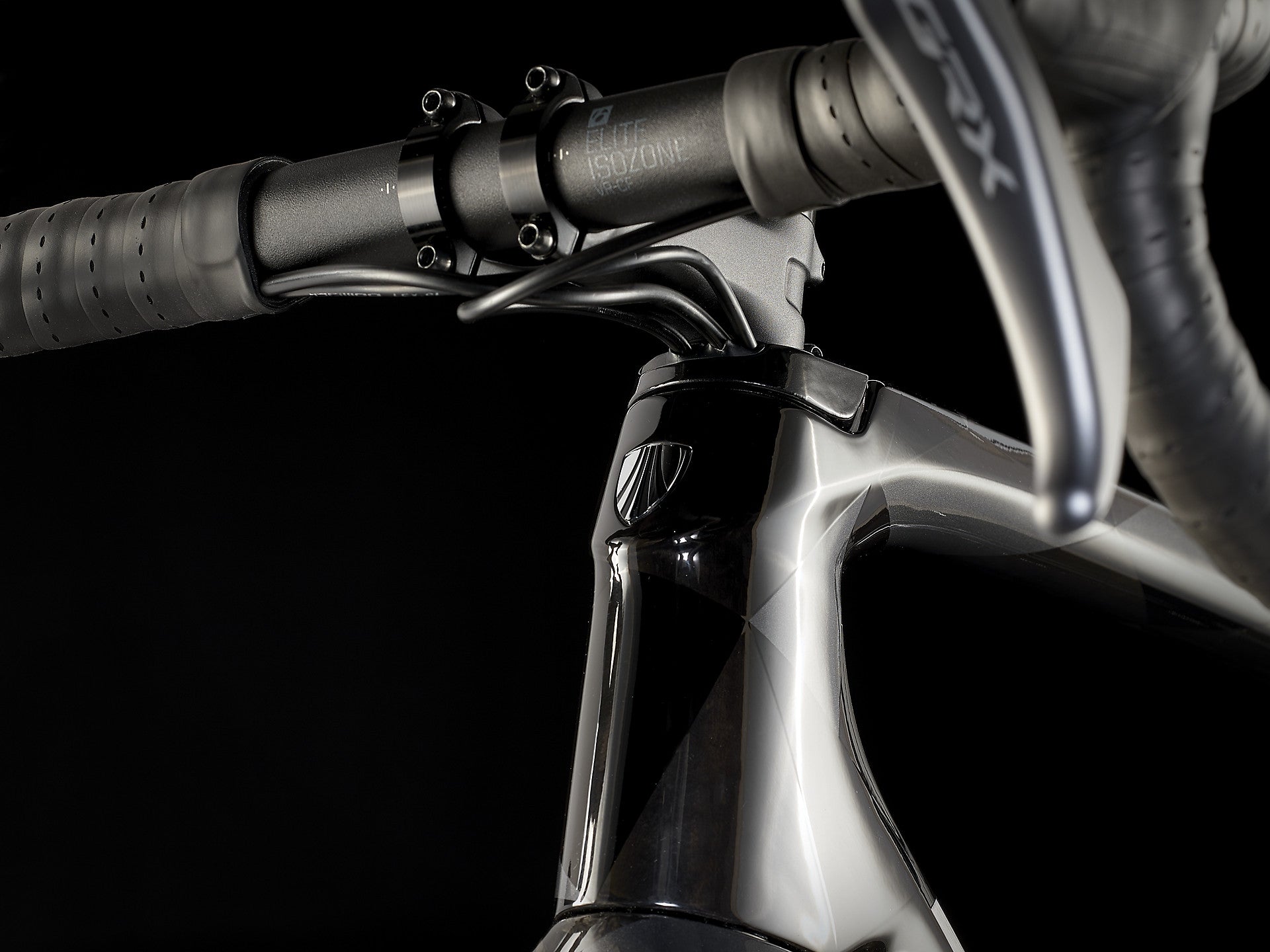

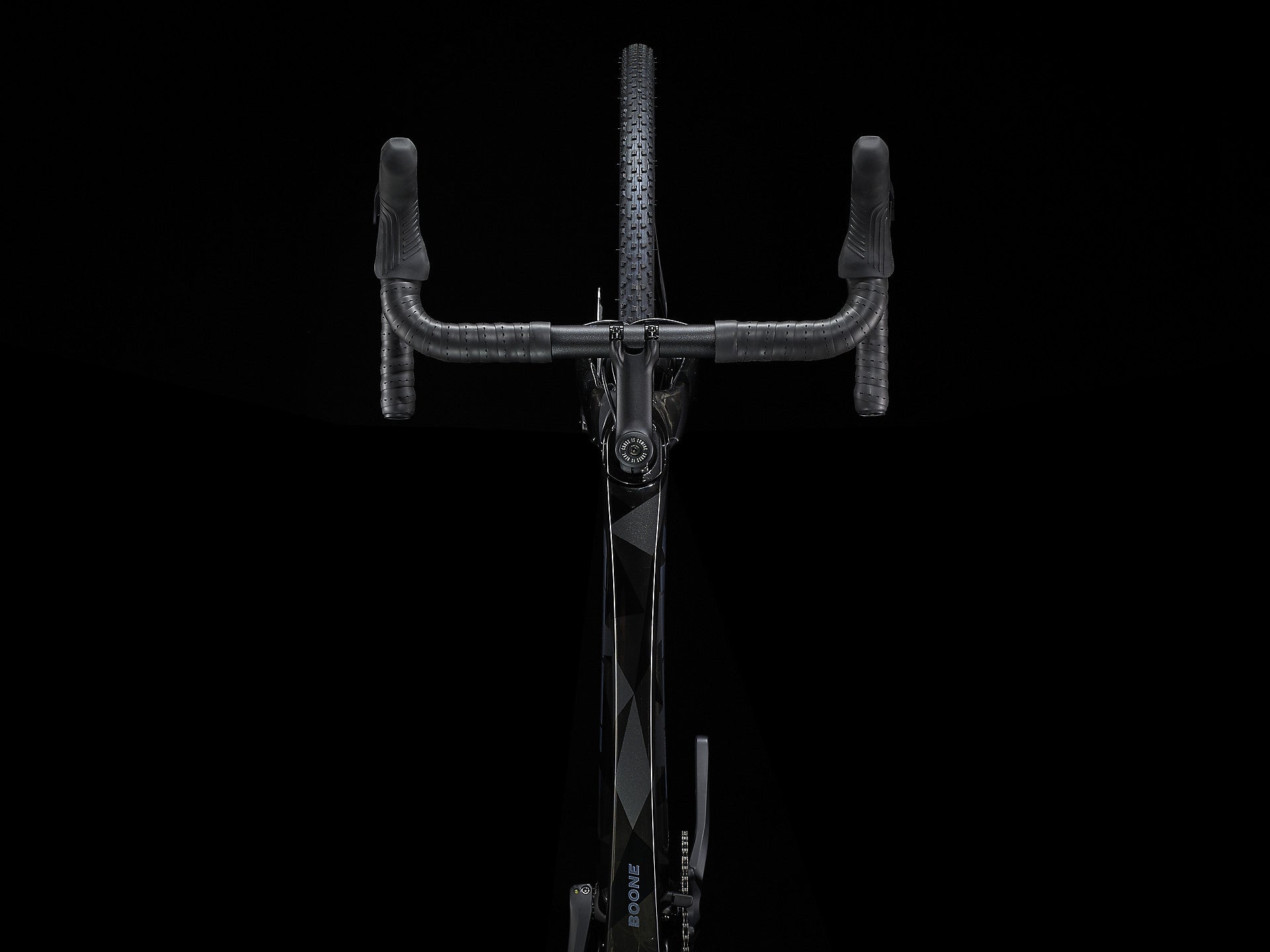

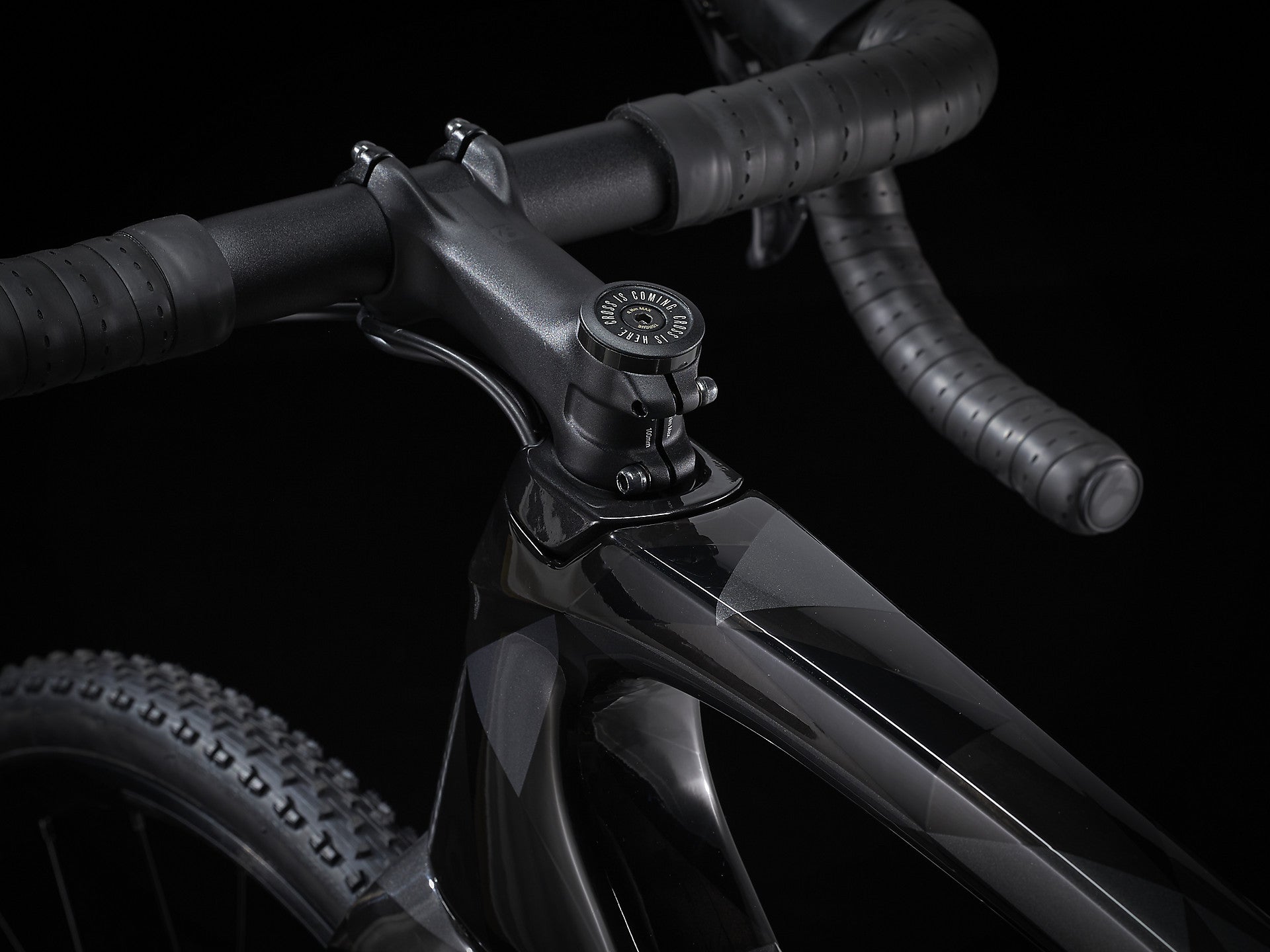

• Handlebar-
  Size: 49 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width
  Size: 52 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width
  Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width
  Size: 58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width

• Stem-
  Size: 49 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  Size: 61 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
• Saddle-
  Size: 49, 52 Bontrager Verse Short Comp, steel rails, 155mm width
  Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
  Size: 54, 56, 58, 61 Bontrager Verse Short Comp, steel rails, 145mm width
  Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
• Seatpost-
  Size: 49, 52, 54, 56 Bontrager carbon seat mast cap, 5 mm offset, short length
  Size: 58, 61 Bontrager carbon seat mast cap, 5 mm offset, tall length

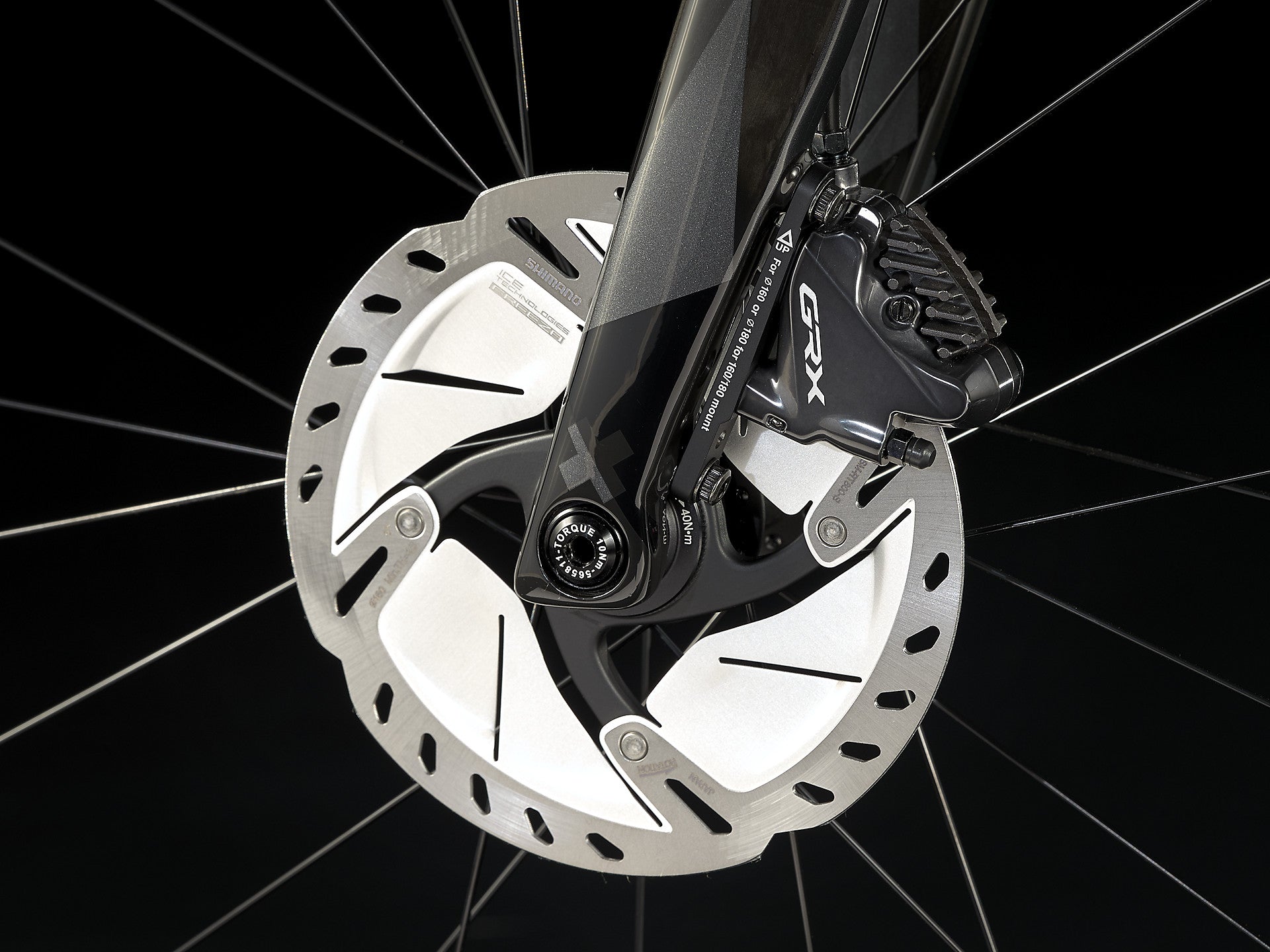

• Front Brake- Shimano RX810 hydraulic disc, flat mount
• Rear Brake- Shimano RX810 hydraulic disc, flat mount
• Front Wheel- Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
• Rear Wheel- Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
• Tire- Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32c
• Weight(Apprx)- 8.30 kg
