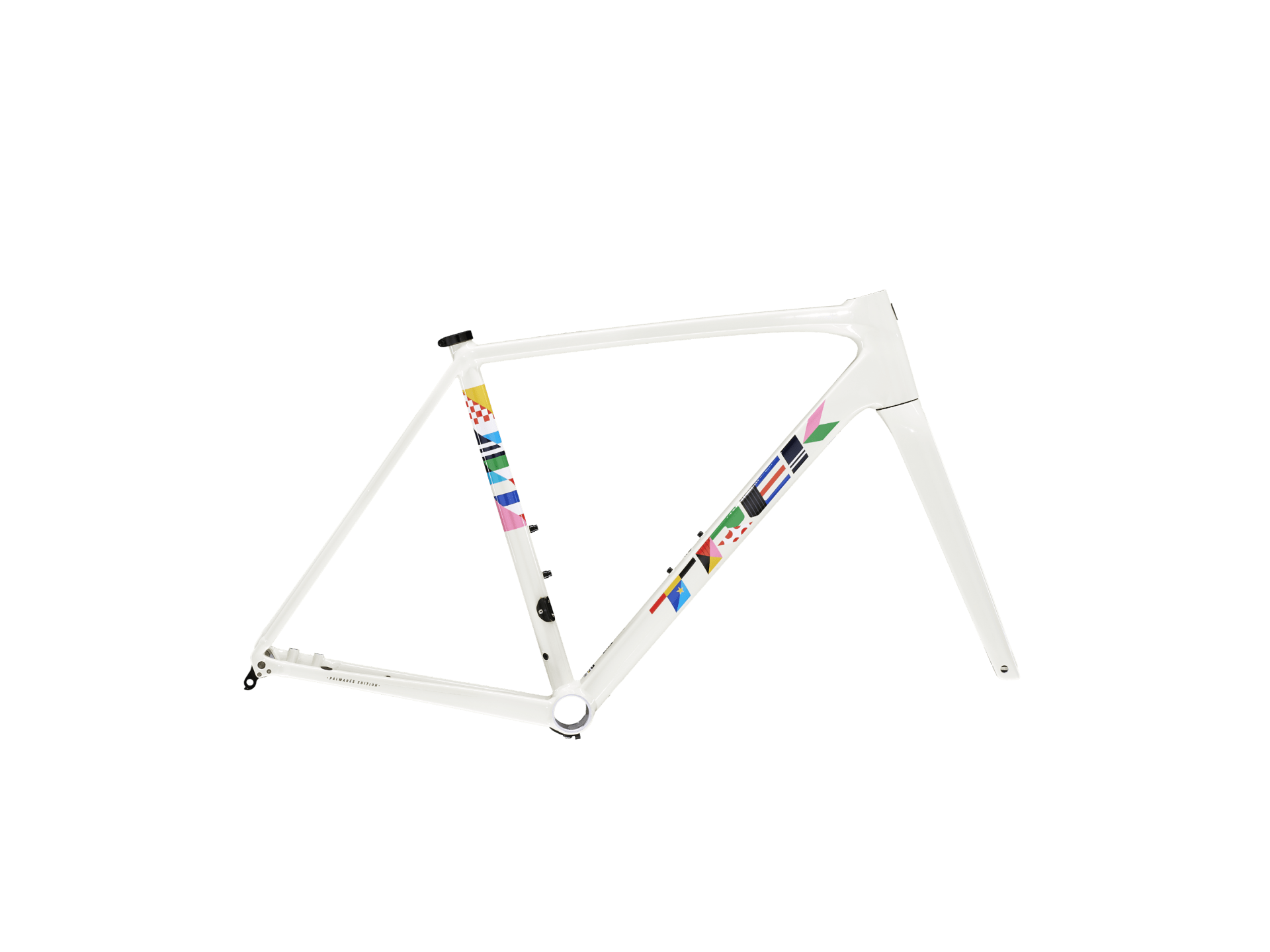

Trek Emonda ALR Disc Frameset (Era White)

Description

The Émonda ALR frame set is a race-ready, top-tier alloy frame that's intensely light, fast and far more pocket-friendly than carbon frames of its calibre. This lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage.

Features

• The Émonda ALR was built with our best and lightest 300 Series Alpha Aluminium and a gram-trimming design to keep things light, fast and fun.
• An optimised H1.5 race geometry, developed in collaboration with Trek-Segafredo, puts you in the right position for power.
• Integrated cable routing cleans up the cockpit and makes the Émonda ALR even faster in the wind.
• The Émonda ALR's new Kammtail aero tube shaping keeps things light and fast wherever you ride – whether you're powering up climbs or racing across flats.

Specifications

• Model Year- 2024
• Material- Aluminum, Carbon
• Fork Construction- Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
• Frame Material- Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
• Headset Included- No
• Seatpost Clamp included- Yes
• Bottle mount- Yes
• Fender Mounts- Yes
• Rack Mounts- No
• Cable Routing- Internal
• Max Chainring- 1x: 48T, 2x: 53/39 (Shimano), 48/35 (SRAM)
• Weight- 1257g - 56cm (frame-only, painted)
  406g (fork-only, painted)
